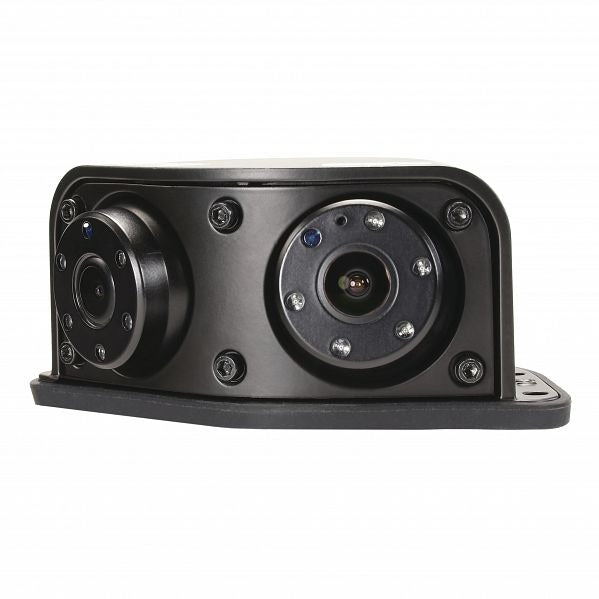

Heavy-Duty AHD 1080P Dual Side Camera
Introducing the Aerpro AVC16 AHD 1080P Heavy Duty Dual Side Mount Cameras, a commercial-grade camera from the Aerpro Advanced Safety Vision Systems range. Designed to deliver exceptional clarity and reliability for vehicle safety and surveillance, this rugged camera features advanced AHD (Analogue High Definition) technology, providing high-definition visuals that significantly enhance visibility and situational awareness. The AVC16's universal side mount with adjustable ball-mount camera lens allows flexible positioning on the vehicle, optimising the field of view to suit diverse applications. Capture a wide field of vision with a 160 and 105 degree diagonal lens angle on the cameras and independent ball-mount camera adjustments, ensuring comprehensive coverage of vehicle surroundings. Each camera can be removed from the housing making it compatible with left or right hand side orientation. Built to withstand challenging environments, the AVC16 is IP69K rated for superior water and dust protection. Additionally, the PCB is completely sealed by an encapsulation process which provides the maximum amount of protection, preventing any external substances from reaching the sensitive equipment, ensuring reliable performance even in harsh conditions. Compatible with 12V or 24V systems, the AVC16 is suitable for a wide range of vehicles, including cars, 4x4s, vans, motorhomes, buses, trucks, semi-trailers, trailers, caravans, horse floats, forklifts, agricultural vehicles, heavy machinery, tractors and more. Equipped with 5x IR LEDs per camera, it offers enhanced night vision capability, delivering clear imaging in low-light conditions. The camera utilises a secure 4-pin wired connection for stable, weatherproof connectivity. Backed by our industry-leading 5-year warranty, the Aerpro AVC16 AHD 1080P Heavy Duty Dual Side Mount Cameras combines cutting-edge technology with reliability and durability. Elevate your vehicle's safety and surveillance capabilities with the Aerpro Advanced Safety Vision System - your trusted partner on the road.
Additional Information:
- This is a camera only, monitors and camera cables are sold separately.
Key Features:
- 1080P AHD (Analogue High Definition): Experience exceptional clarity and detail with advanced AHD technology, providing high-resolution images for enhanced visibility
- Universal Side Mount: The adjustable ball mounted lens enables flexible positioning on the side of your vehicle, optimising the field of view
- Dual Camera Adjustments: Features dual independent vertical adjustments, enabling a custom view according to personal preferences
- 160 and 105 Degree Lens Angle: Capture a wide field of view, ensuring comprehensive coverage of the vehicle surroundings
- IP69K Rated: Benefit from superior water and dust protection, ensuring durability and weather resistance in challenging environments
- PCB Encapsulation: Provides robust protection against environmental factors, mechanical stresses, and moisture ingress, enhancing the durability and longevity of the camera
- 12/24V DC Compatibility: Operates seamlessly on 12V or 24V systems, suitable for a wide range of vehicles
- 10x IR LEDs: Enhanced night vision capability, providing clear imaging even in low-light conditions
- Secure 4 Pin Wired Connection: Utilises a reliable 4 pin camera connector for stable, secure and weatherproof connection
- Industry-Leading 5-Year Warranty: Backed by a 5-year warranty, ensuring long-lasting performance and peace of mind
Specifications:
- Mounting Type: Side Mount
- Viewing Type: Reverse
- Lens Angle Degree: Horizontal: 140 + 90 Vertical Angle: 90 + 50 Diagonal: 160 + 105
- Image Sensor: CMOS
- Resolution: 1080P AHD
- Signal System: PAL
- IP Rating: IP69K
- Vibration Rating: 5.9G
- Voltage: 12/24V
- Minimum Illumination: 0.01 Lux
- Number of IR LEDs: 10 (5 per camera)
- Built in Microphone: Yes
- Connection Type: 2 x 4 Pin
- Cable Length: 50cm
- Dimensions: 114mm x 82mm x 48mm (Including Rubber Grommet)
- Wired or Wireless: Wired
- Weight: 0.40kg
What's in the box:
- 1 x AHD 1080P Dual Side Mount Cameras
- 1 x 50cm Camera Cable
